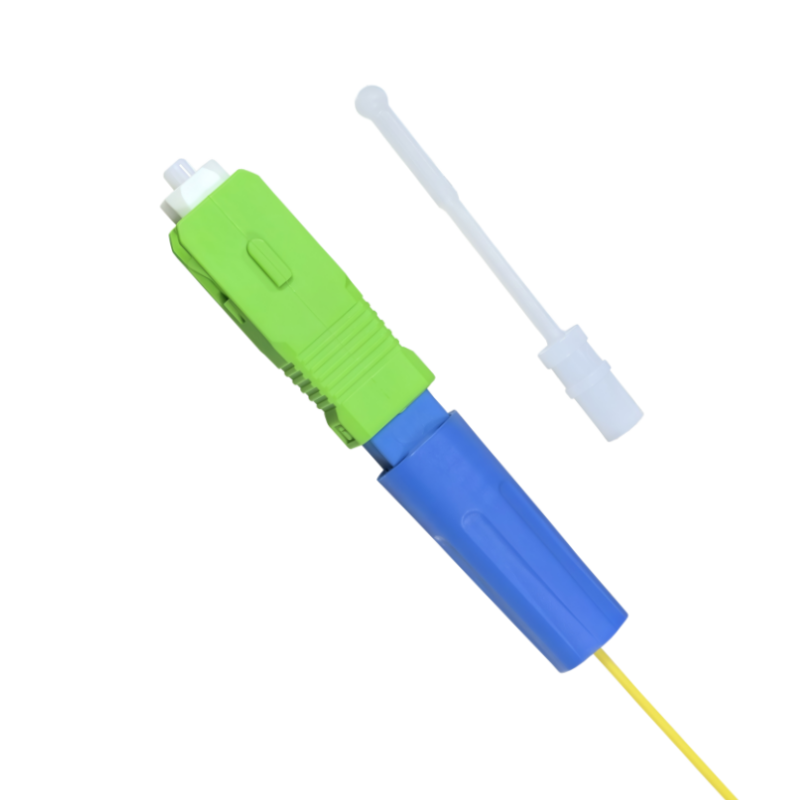

ZTTFIBER SCAPC Hot Melting Type Optical Fiber Fusion Splice on Fast SOC Connector

The ZT22 Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field-installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reduce the time required for fiber termination. The Fast connector series is already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Chat on WhatsApp Get Sample

• Comply with TIA/EIA and IEC;

• Quick and easy fiber termination;

• RoHS compliant;

• Reusable termination capability [Up to 10 times];

• Easy to deploy fiber solution;

• High success rate of connections;

• Low Insertion & Back Reflection;

• No special tools required;

• All fiber interconnection;

• Telecom Distribution and Local Area Networks;

• FTTH and FTTx;

• Passive optical networks [ATM, WDM, Ethernet];

• Broadband, Cable TV (CATV).

Applicable for 3.0x2.0 mm Drop Cable and 5.0mm round cable

Fiber mode 9/125μm Single-mode

Polish Type APC/UPC

Dimension 51mm

Housing Green and Blue

Ferrule Material Ceramic(Zirconia)

Operation Time About 60S (no fiber cut)

Insertion Loss(Typ.) ≤0.20 dB

Insertion Loss(Max.) ≤0.40 dB

Return Loss ≥45 dB (APC ≥50 dB)

Fastening Strength of Naked Fiber ≥5 N

Tensile Strength ≥50 N

Reusable ≥10 times

Operating Temperature -40～+75 °C

On-line tensile strength(20N) ΔIL ≤0.25 dB

Mechanical Durability(500times) ΔIL ≤0.25 dB
