> Fiber Optic Preconnectorized Terminal Box

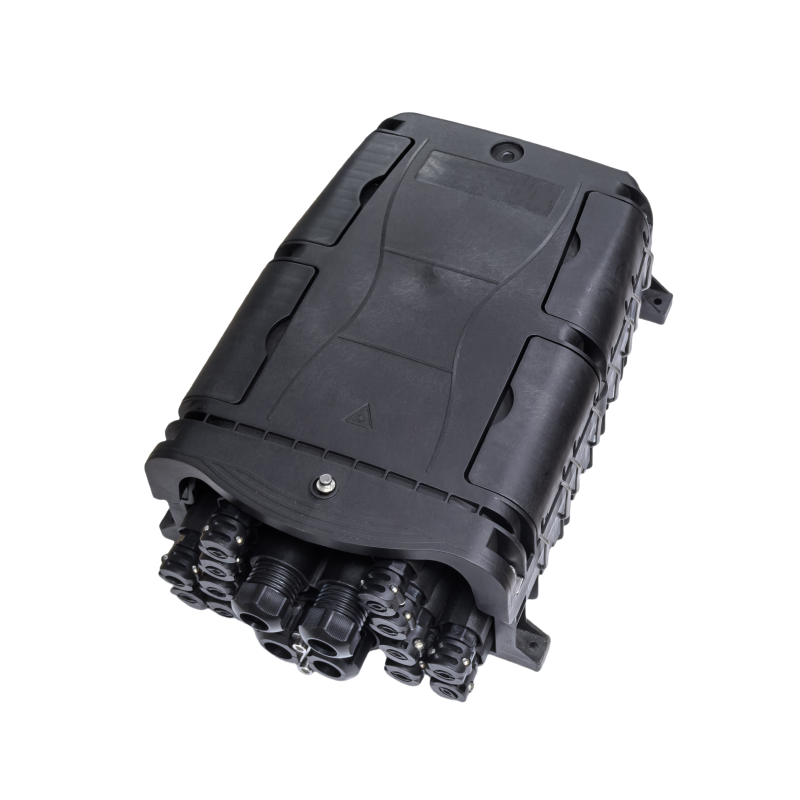

ZTTFIBER’s terminal box is an innovative solution for the development of FTTX fiber optic networks in external or internal plant environments . It can be installed on the wall , pole or messenger cable.It allows the passage of low or medium density cable and rapid distribution through its pre-connectorized output ports , which considerably saves time and operating costs.
● High-strength PC+ABS plastic housing
● Integrated splice cassette and cable management design
● Maintains proper fiber bending radius (≥40mm)
● Supports SC, Duplex LC, and FC (SC flange) adapters
● Optional installation: 2×1:16 PLC splitters or 1×1:32 splitter
● 1 feeder port, 1 drop port, 2 mid-span ports for distribution cables
● IP68-rated waterproof protection, ideal for harsh outdoor environments
● Wall-mount design for easy installation and maintenance
● FTTH / FTTX networks
● Optical LAN, WAN, and CATV
● PON systems and optical signal distribution
● High-speed broadband and data transmission
● Active equipment termination
● Field testing and monitoring systems
