> Outdoor FTTX Preconnectorized Drop Cable

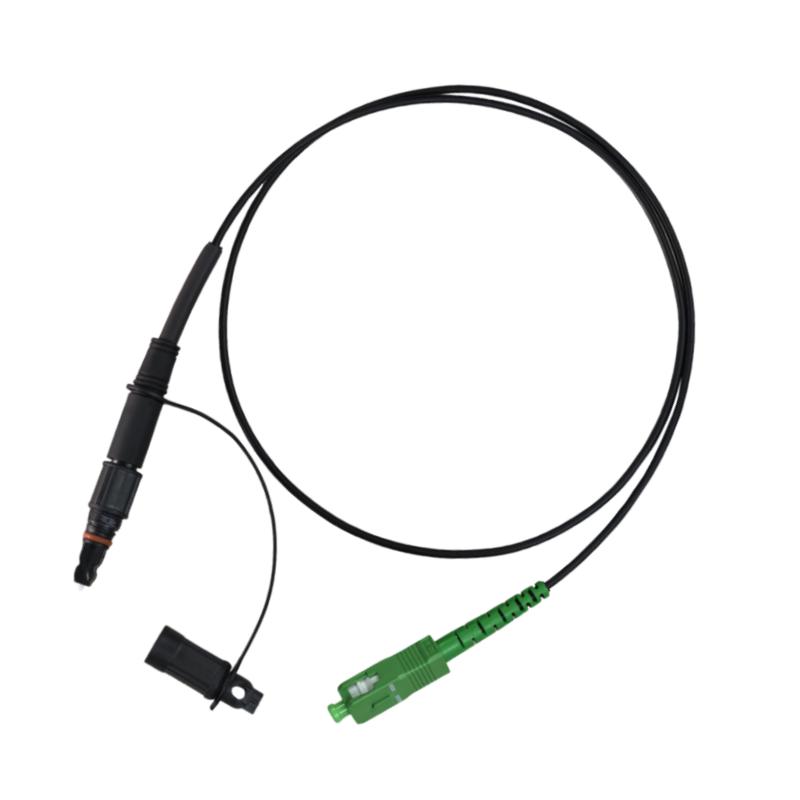

The FHD-XJ1B1500F is a factory-terminated fiber drop cable assembly from the DLX series. It features a hardened DLX connector on one end and an SC/APC connector on the other. The cable is a G.657.A1 single-mode fiber, 1500 feet (approx. 457 meters) in length, offering high mechanical strength and environmental durability for outdoor or underground deployment.
● Factory pre-terminated, no splicing required on-site
● Hardened DLX connector, UV-resistant and weatherproof
● SC/APC standard connector with low insertion loss (typical 0.16 dB, max 0.4 dB)
● High return loss ≥ 65 dB
● Strong mechanical properties: 400 N long-term tension, 1334 N short-term
● Minimum bend radius (loaded): 86 mm
● Crush resistance: 22 N/mm
● Operating temperature: -40°C to +70°C
● Compliant with IEC and Telcordia standards
● Fiber to the Home (FTTH) solutions
● Outdoor fiber access network (FTTx) deployments
● Fast-deployment projects without on-site termination
● Fiber connectivity in harsh environments (extreme temperature, moisture, underground)
