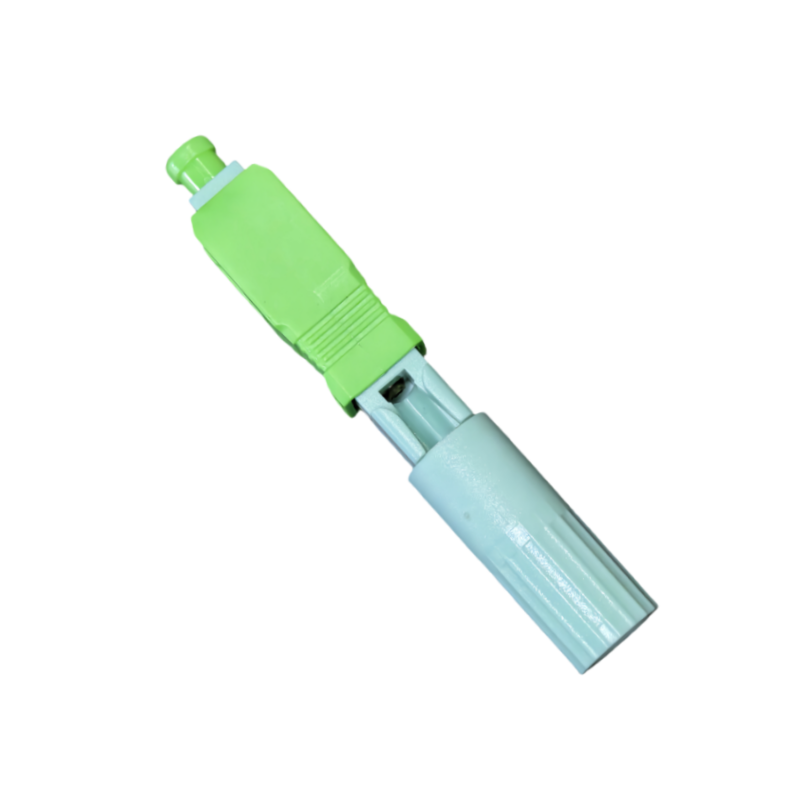

FTTH Field Assembly Fast Connector 5.0mm SC APC Fiber Cable Quick Conector

The ZT50, this kind of Field Assembly Optical Connector, is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision PEI V-groove and high-quality Zirconia ferrules and provides a highly reliable connection in most of the network applications. The SC type is available with a 5.0mm Round Cable & 2.0 x 3.0mm Flat Cable.

Chat on WhatsApp Get Sample

• Comply with TIA/EIA and IEC;

• Quick and easy fiber termination;

• RoHS compliant;

• Reusable termination capability [Up to 10 times];

• Easy to deploy fiber solution;

• High success rate of connections;

• Low Insertion & Back Reflection;

• No special tools required;

• All fiber interconnection;

• Telecom Distribution and Local Area Networks;

• FTTH and FTTx;

• Passive optical networks [ATM, WDM, Ethernet];

• Broadband, Cable TV (CATV).

Applicable for 3.0x2.0 mm Drop Cable and 5.0mm round cable

Fiber mode 9/125μm Single-mode

Polish Type APC/UPC

Dimension 51mm

Housing Green and Blue

Ferrule Material Ceramic(Zirconia)

Operation Time About 60S (no fiber cut)

Insertion Loss(Typ.) ≤0.20 dB

Insertion Loss(Max.) ≤0.40 dB

Return Loss ≥45 dB (APC ≥50 dB)

Fastening Strength of Naked Fiber ≥5 N

Tensile Strength ≥50 N

Reusable ≥10 times

Operating Temperature -40～+75 °C

On-line tensile strength(20N) ΔIL ≤0.25 dB

Mechanical Durability(500times) ΔIL ≤0.25 dB
